FR-SPOTON 8.52L/MIN Spoton Sprayer Calibrator SC 2

Item Description
Product Brand: SPOTON
Product Name: Spoton Sprayer Calibrator SC 2
Product Code: FR-SPOTON 8.52L/MIN
Range: 0.02 – 2.25 GPM, 0.08 – 8.52 LPM, 3 – 288 oz/min (GPM in US Gallons)
Accuracy: +/-2% or 1 Digit

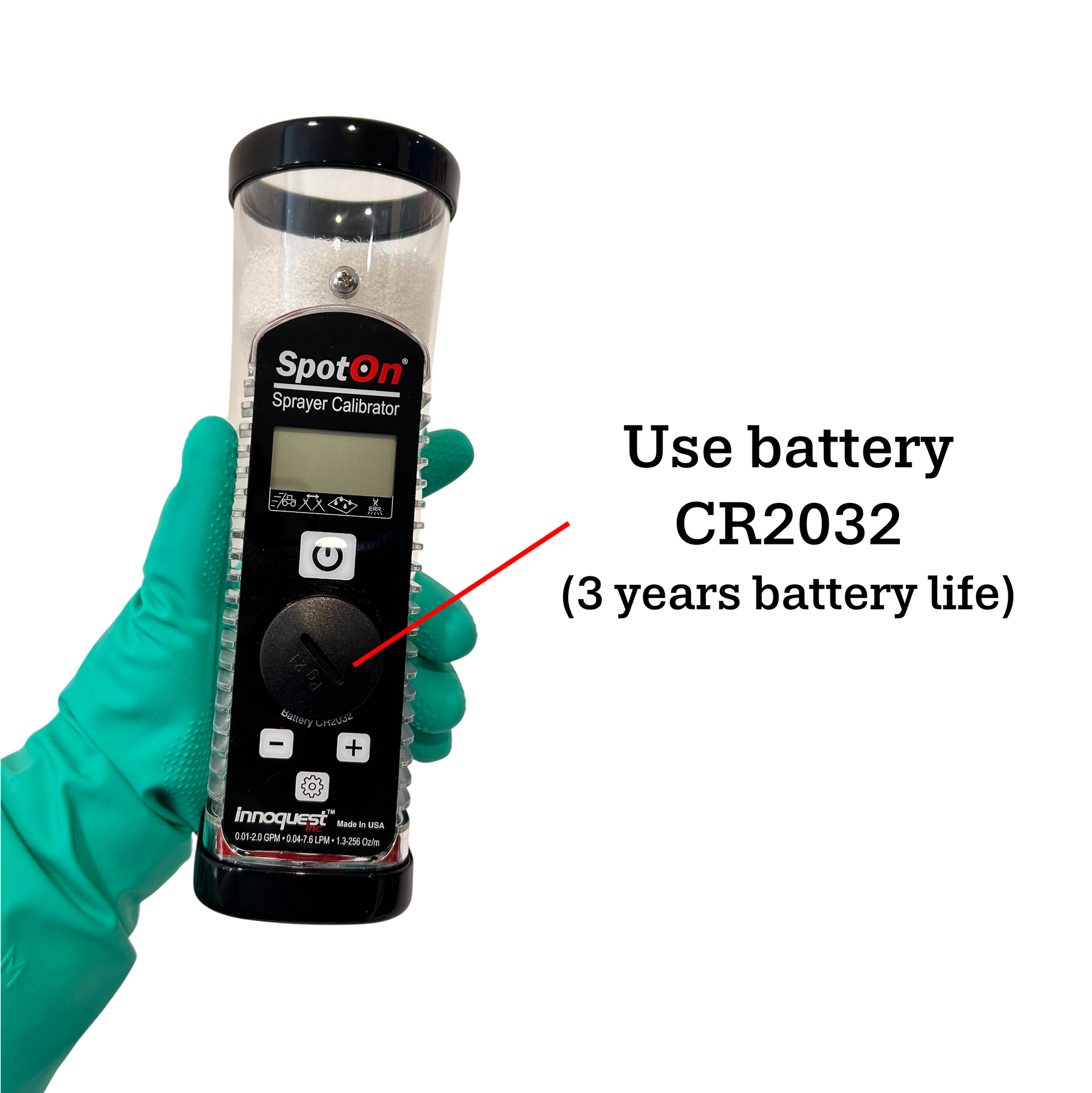

Battery: CR2032 included (3 years battery life)
Size Intrument: 22.0 x 7.5 cm
Packing Size: (24.5 x 8.50 x 8.50) cm
Net Weight: 0.272 kgs
Gross Weight: 0.394 kgs
Product Origin: USA

Share:

DESCRIPTION

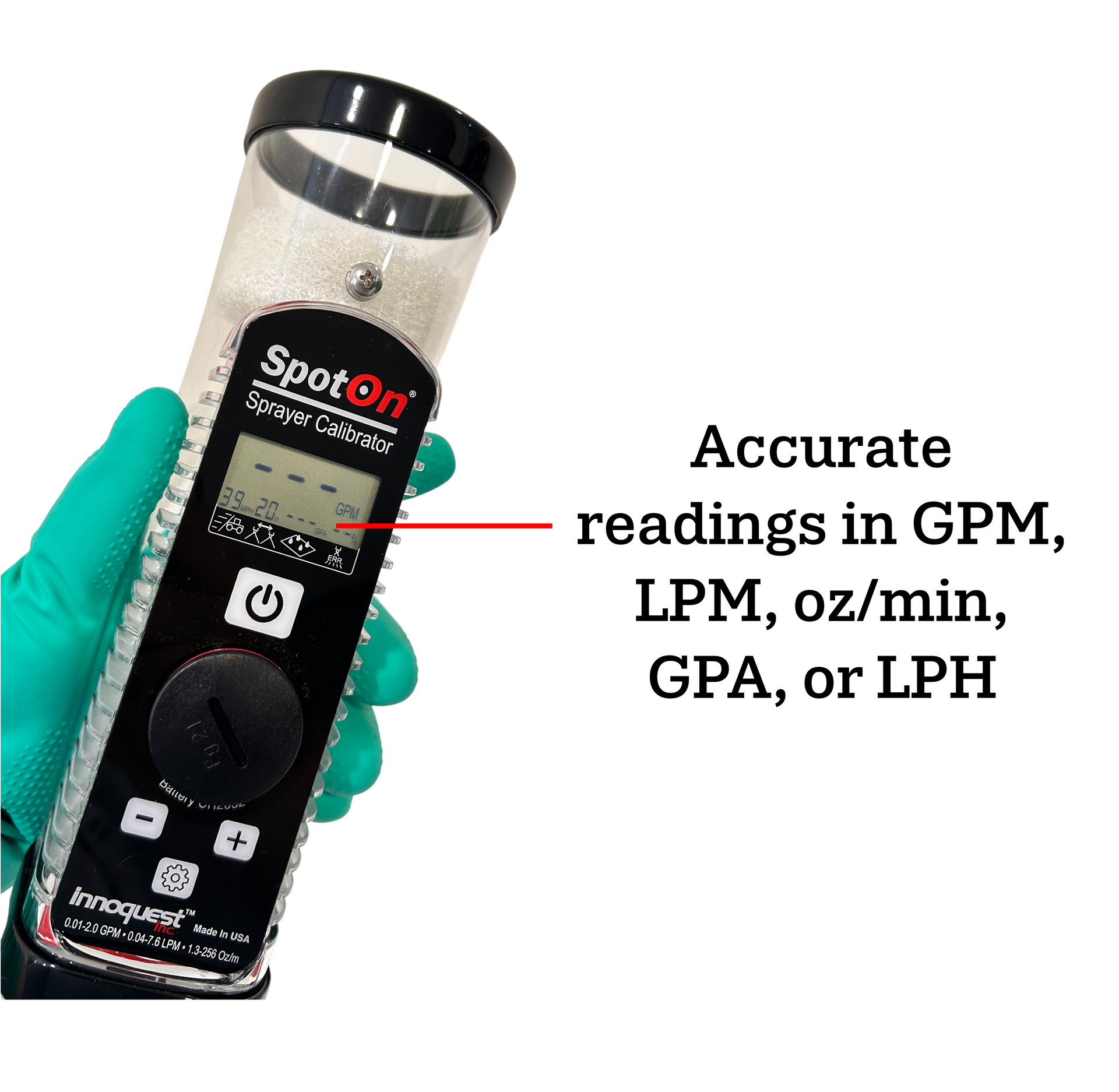

This SpotOn Sprayer Calibrator SC-2 is an easy-to-use flow meter helps you quickly measure and display nozzle tip flow rate, tip wear percentage, and application rate without any calculations or app downloads. Simply enter your speed and nozzle spacing to get accurate readings in GPM, LPM, oz/min, GPA, or LPH.



Designed for fast and simple operation, it helps ensure proper sprayer calibration by accurately measuring true tip flow rate. Industry guidelines recommend replacing the tip when the flow rate exceeds 10% of a new tip.

Suitable for testing water and water-based solutions only. Not recommended for chemical liquids.

OUTSTANDING FEATURES

  • No calculations or app download required

- Automatically calculates and displays tip flow rate in GPM, LPM, oz/min, tip wear in % and application rate in GPA/LPH (just enter your speed and nozzle spacing)

- Range: 0.02 – 2.25 GPM, 0.08 – 8.52 LPM, 3 – 288 oz/min (GPM in US Gallons)

  • Fast and simple operation:

- Industry guidelines recommend tip replacement once flow rate exceeds that of the new tip by 10%

  • Accurately measure true tip flow rate:

 - Today’s high-tech sprayers can only be properly calibrated and confirmed with this knowledge

  • Liquid compatibility

- For water and water-based solutions only. Not to test with chemical liquid.

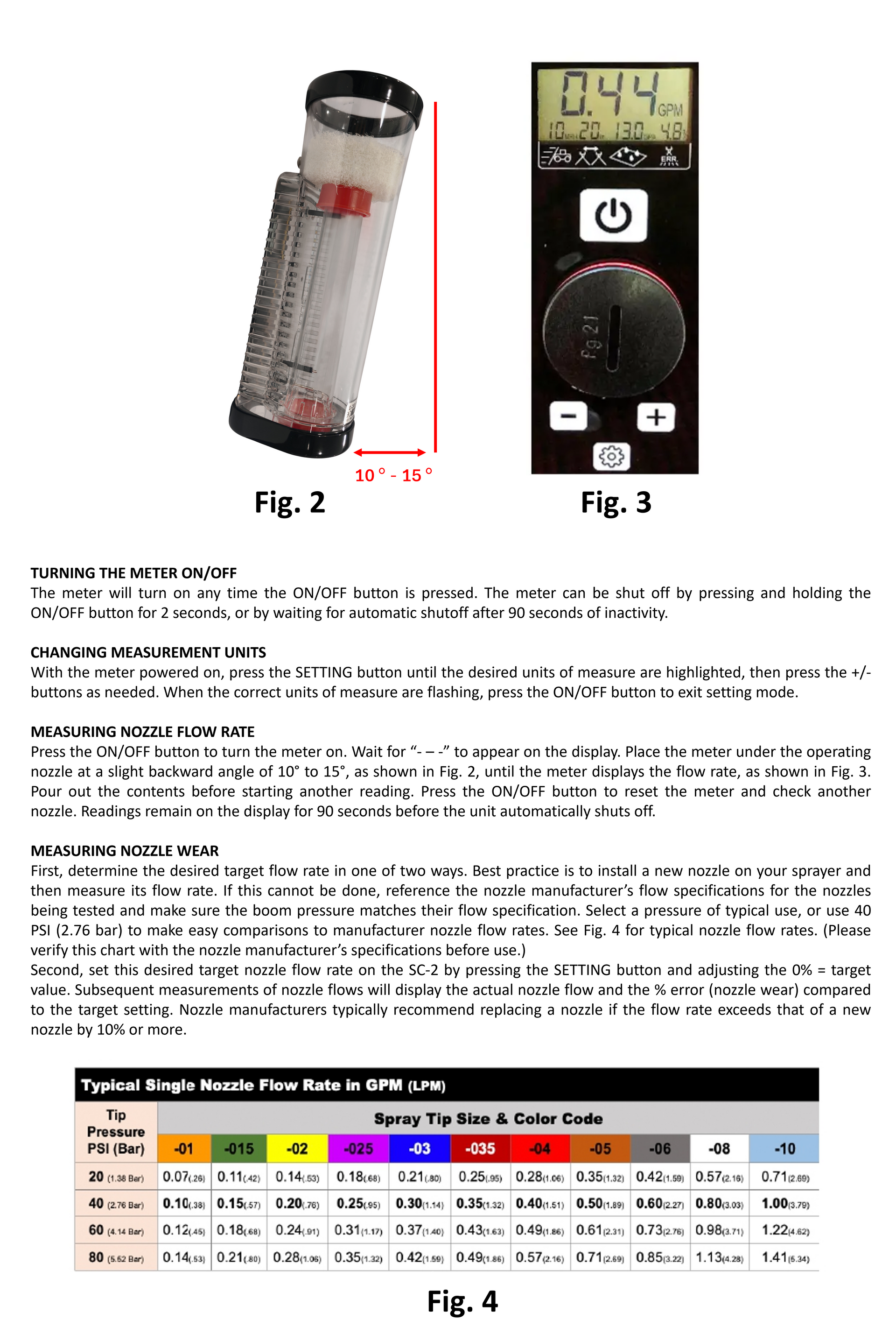

OPERATING INSTRUCTION

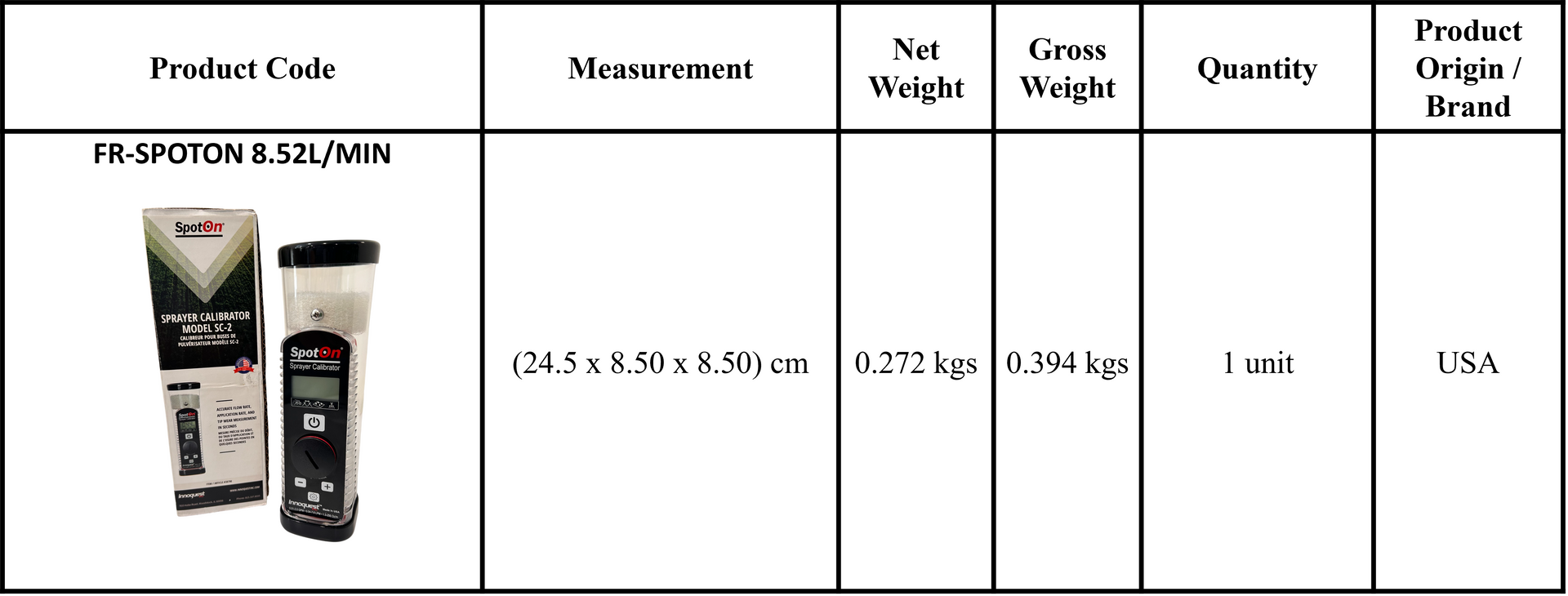

PACKING DETAILS
