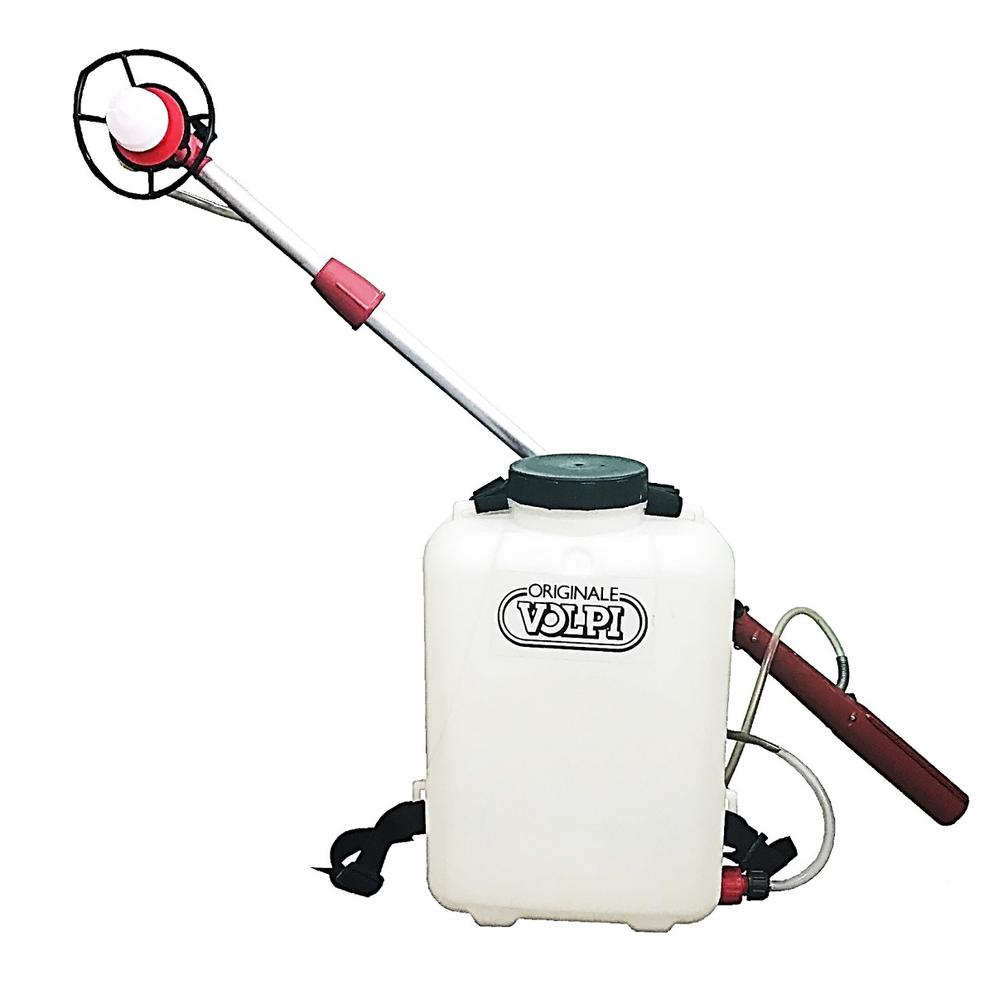

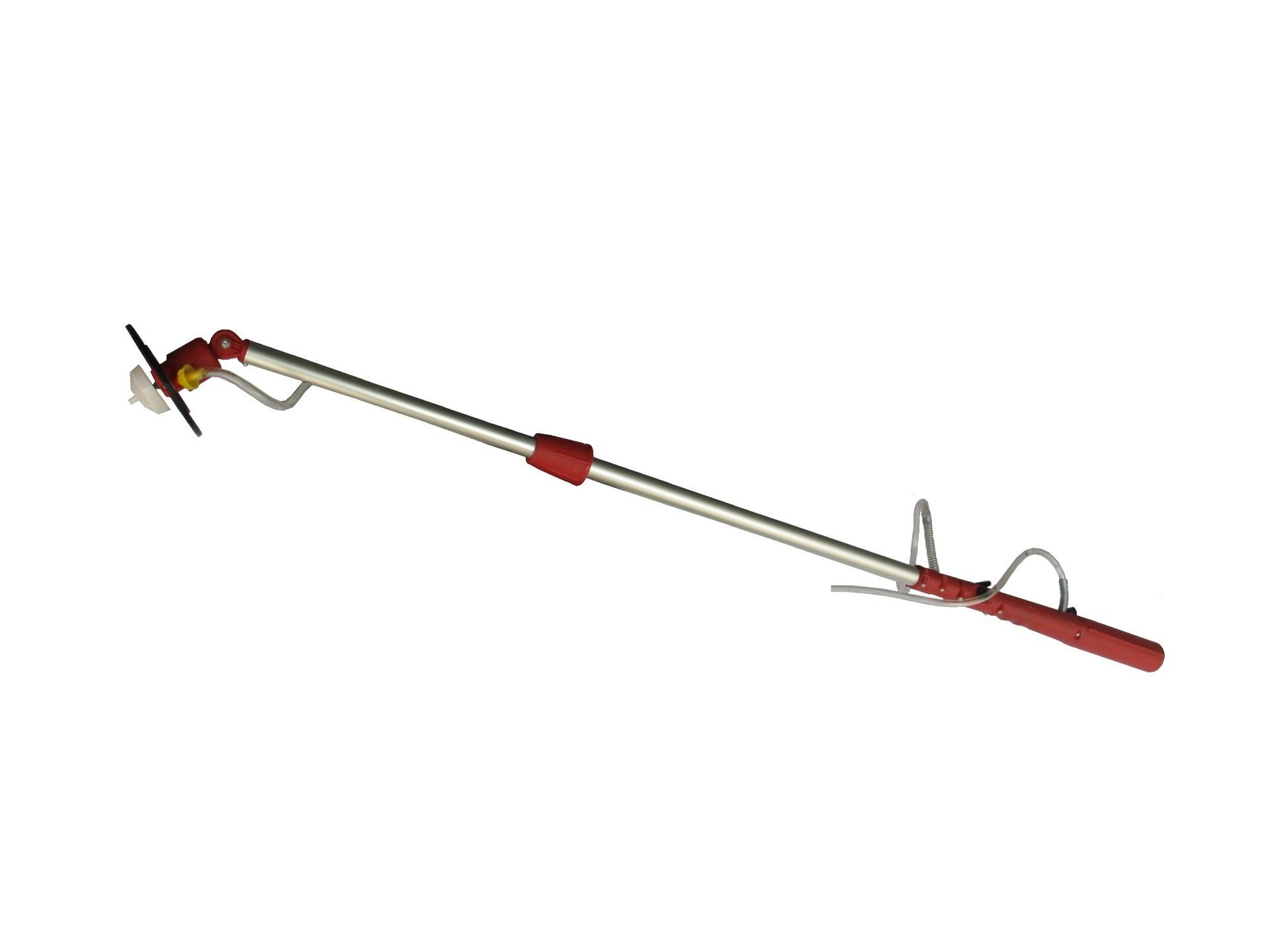

Control Droplets Applicator (CDA) VOLPI-M3V

Brand:
VOLPI
Brand:
VOLPI
Product Code:
VOLPI-M3V
Product Code:
VOLPI-M3V
Tank Capacity:
10 Liter
Tank Capacity:
10 Liter
Battery:
1.5V (2 pcs), size: D
Battery:
1.5V (2 pcs)
Working Hour:
7 – 9 hours
Working Hour:
7 – 9 hours
Swath:
1.5m (depend on work height)
Nozzle Tip Flow Rate:
Approx.: 0.20 L/Min (Green Colour) / Approx.: 0.25L/Min (Yellow)
Swath:
1.5m (depend on work height)
Lance, Max. Length:
1.4 m
Nozzle Tip Flow Rate:
Approx.: 0.20 L/Min (Green Colour) / Approx.: 0.25 L/Min (Yellow Colour)
Lance, Max. Length:
1.4 m
Lance, Min. Length:
1 m
Lance, Min. Length:
1 m
Place of Origin:
Italy
Place of Origin:
Italy
Net Weight:
1.500 kg
Net Weight:
1.500 kg

Share:

Website

  1

1
Shopee
Lazada
DESCRIPTION
DESCRIPTION
The working of this sprayer is based on the modern and cheap "ultra low water addition controlled drop system" which allows a localized and uniform distribution of the product. the very small and optimal drops (250 microns) allow to cover the area to be treated eliminating all the wastes caused by the poor contact (too big drops) and by vaporization (too small drops) of the product.

Light weight and light operation. Good for herbicides application. It produces 250 micron regular drops, which increase the impact on the whole plant favoring a regular distribution.

It can apply for Ultra Low Volume Spray (25 L/Ha) to Very Low Volume Spray (30 L/Ha) depend on nozzles selection, and it allows a lot of time saving (Refill Time) to increase worker spraying productivity.

The Diffusion Disc able to controlled size of drops and covering circular surfaces having a 1.2 - 1.5 m diameter, according to the work height. We recommend to try it on flat surface.
control droplets applicator, cda, battery sprayer, garden sprayer, sprayer, jun chong sprayer, cross mark sprayer, pb original sprayer, hand sprayer, agricultural sprayer, knapsack sprayer, backpack sprayer, semi auto knapsack sprayer, mechanical sprayer, power sprayer, low volume sprayer, durable sprayer, light weight sprayer, weedicide sprayer, herbicide sprayer, pam racun cda, pam racun rumput, mesin penyembur racun rumput, pam racun bateri.
control droplets applicator, cda, battery sprayer, garden sprayer, sprayer, jun chong sprayer, cross mark sprayer, pb original sprayer, hand sprayer, agricultural sprayer, knapsack sprayer, backpack sprayer, semi auto knapsack sprayer, mechanical sprayer, power sprayer, low volume sprayer, durable sprayer, light weight sprayer, weedicide sprayer, herbicide sprayer, pam racun cda, pam racun rumput, mesin penyembur racun rumput, pam racun bateri.

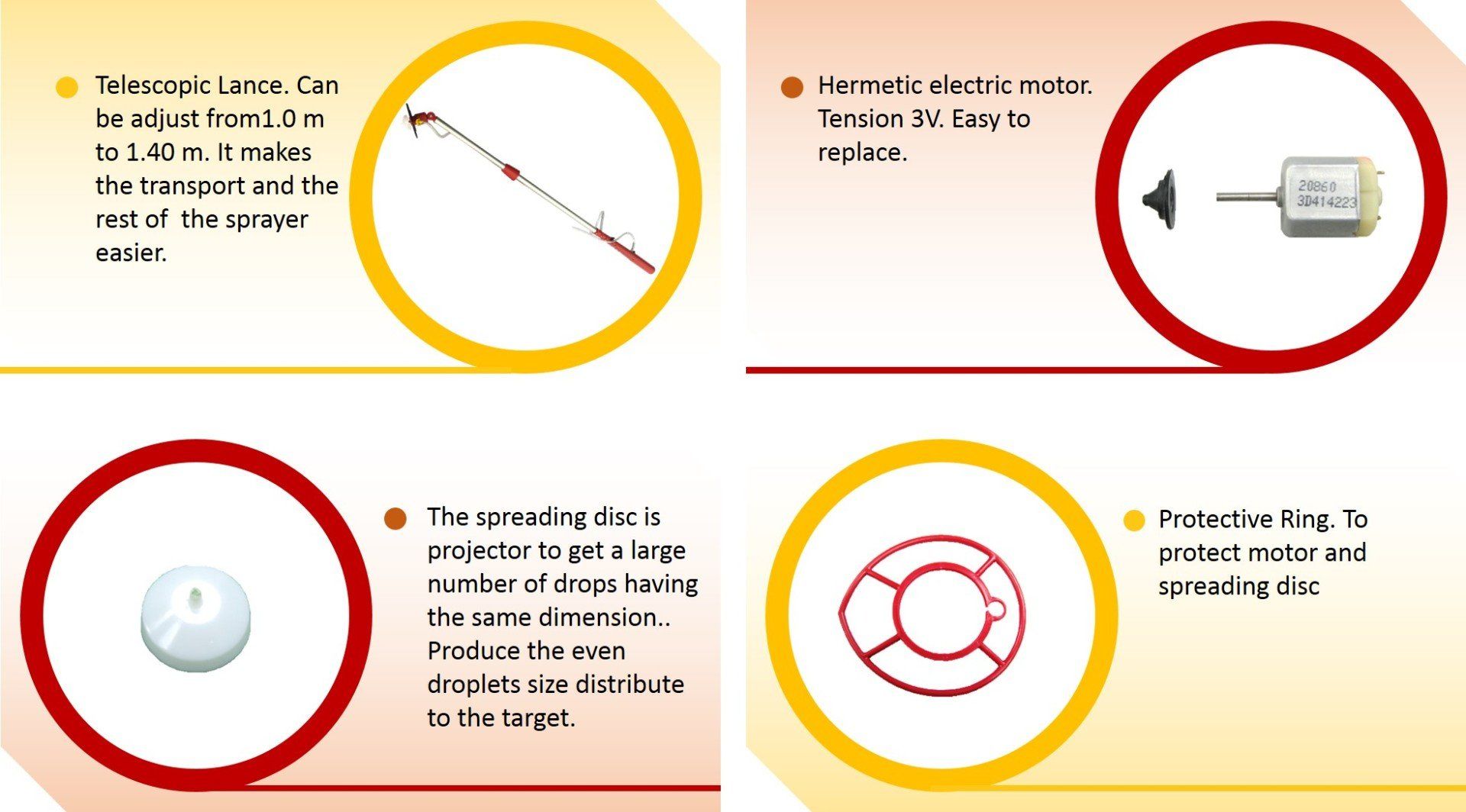

FEATURES

control droplets applicator, cda, battery sprayer, garden sprayer, sprayer, jun chong sprayer, cross mark sprayer, pb original sprayer, hand sprayer, agricultural sprayer, knapsack sprayer, backpack sprayer, semi auto knapsack sprayer, mechanical sprayer, power sprayer, low volume sprayer, durable sprayer, light weight sprayer, weedicide sprayer, herbicide sprayer, pam racun cda, pam racun rumput, mesin penyembur racun rumput, pam racun bateri.

OPERATING INSTRUCTIONS

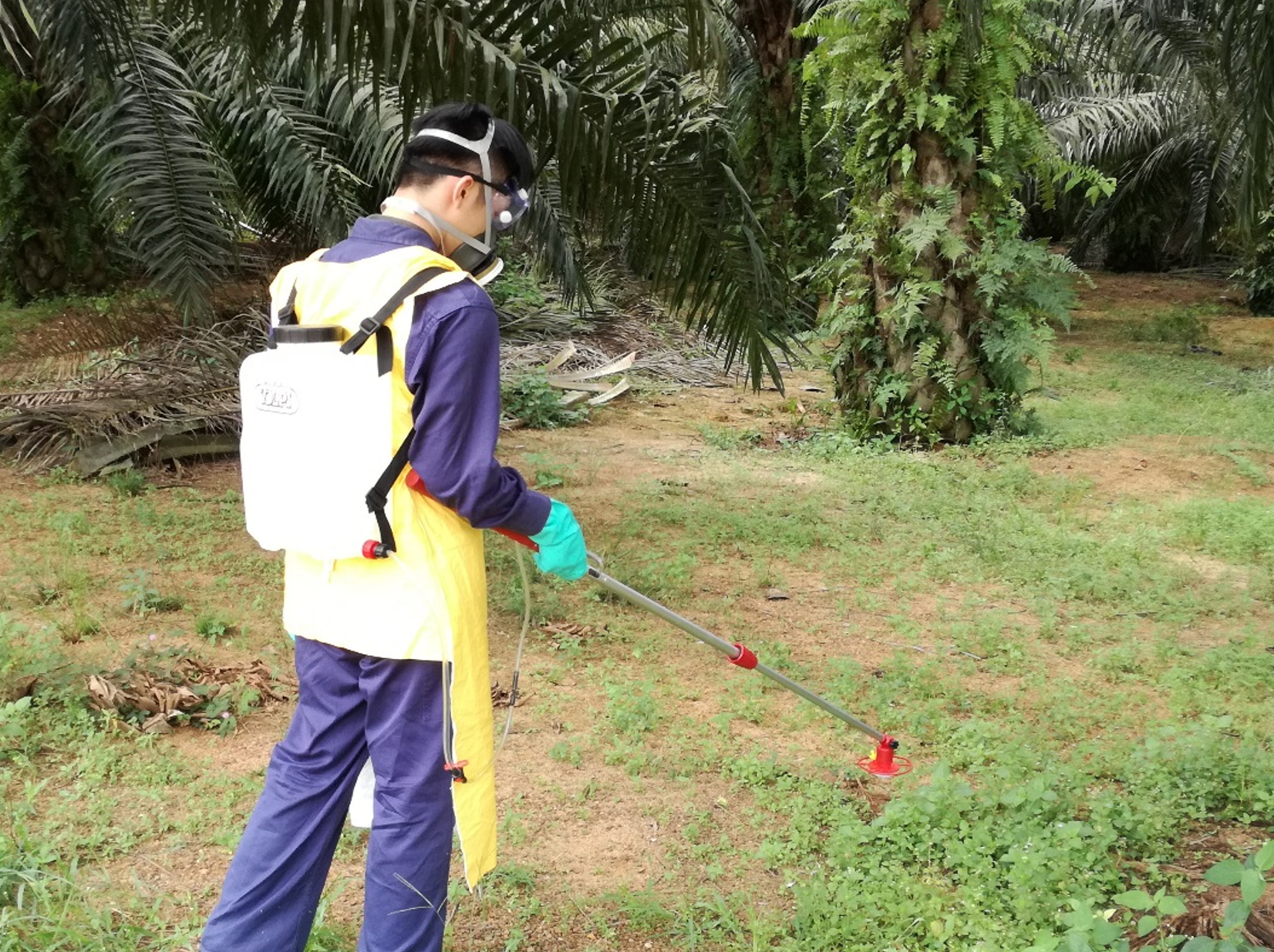

STEP 1.)  Put the tank on the shoulders after adjusting the shoulder-straps.

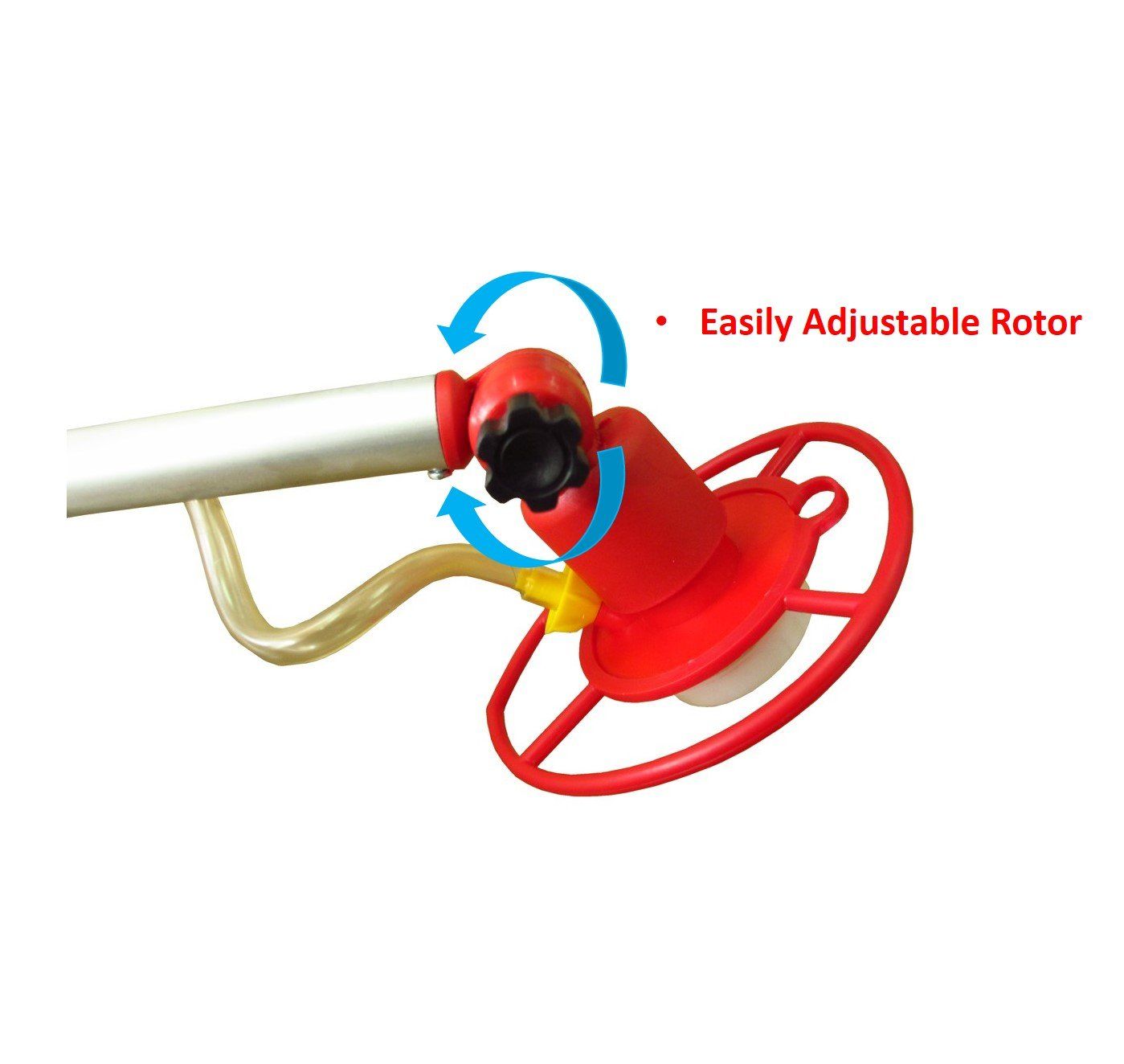

STEP 2.)  Open the Intermediate Tap (depend on model) and adjust the Handle length and the Rotor so that it can be always in vertical position.

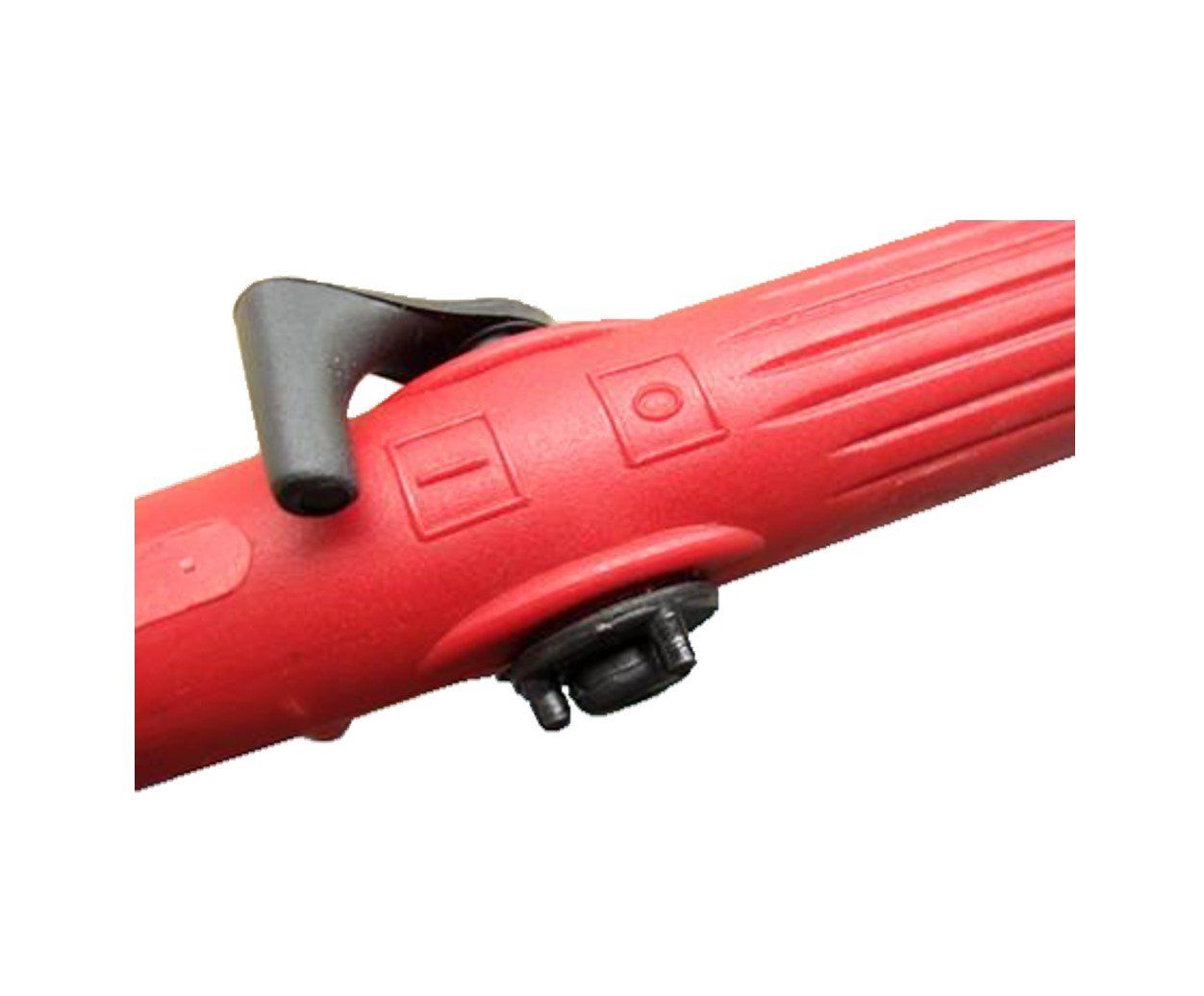

STEP 3.)  Place the Diffusion Disc about 15 cm distance from the area to be treated and then turn on the Switch on the handle. The liquid flow and the Motor will start at the same time. It is forbidden to swing during the use.

MAINTENANCE GUIDES

STEP 1.)  Pour the remaining liquid in a specific container and carefully rinse with clean water inside of the tank.

STEP 2.)  Allow the clean water to through the Hose, Nozzle Tip and Diffusion Disc for 2-3 minutes. Clean the Filters on the Tank cover and inside the tank. Do not dip the Motor into liquids.

STEP 3.) Remove the batteries and clean the sprayer tank with a wet rag.

STEP 4.) Keep it far from the children and protected from sun and humid.

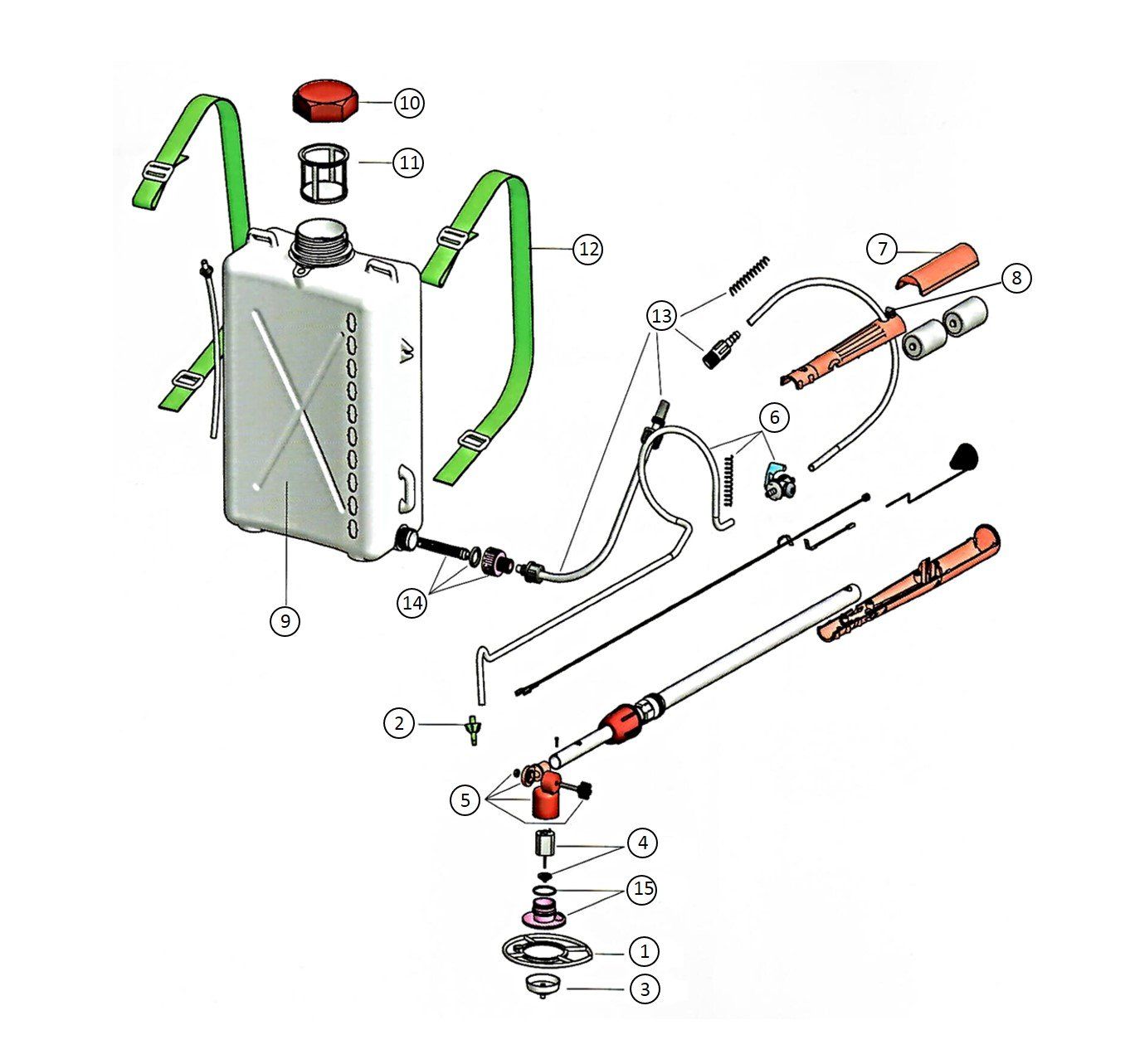

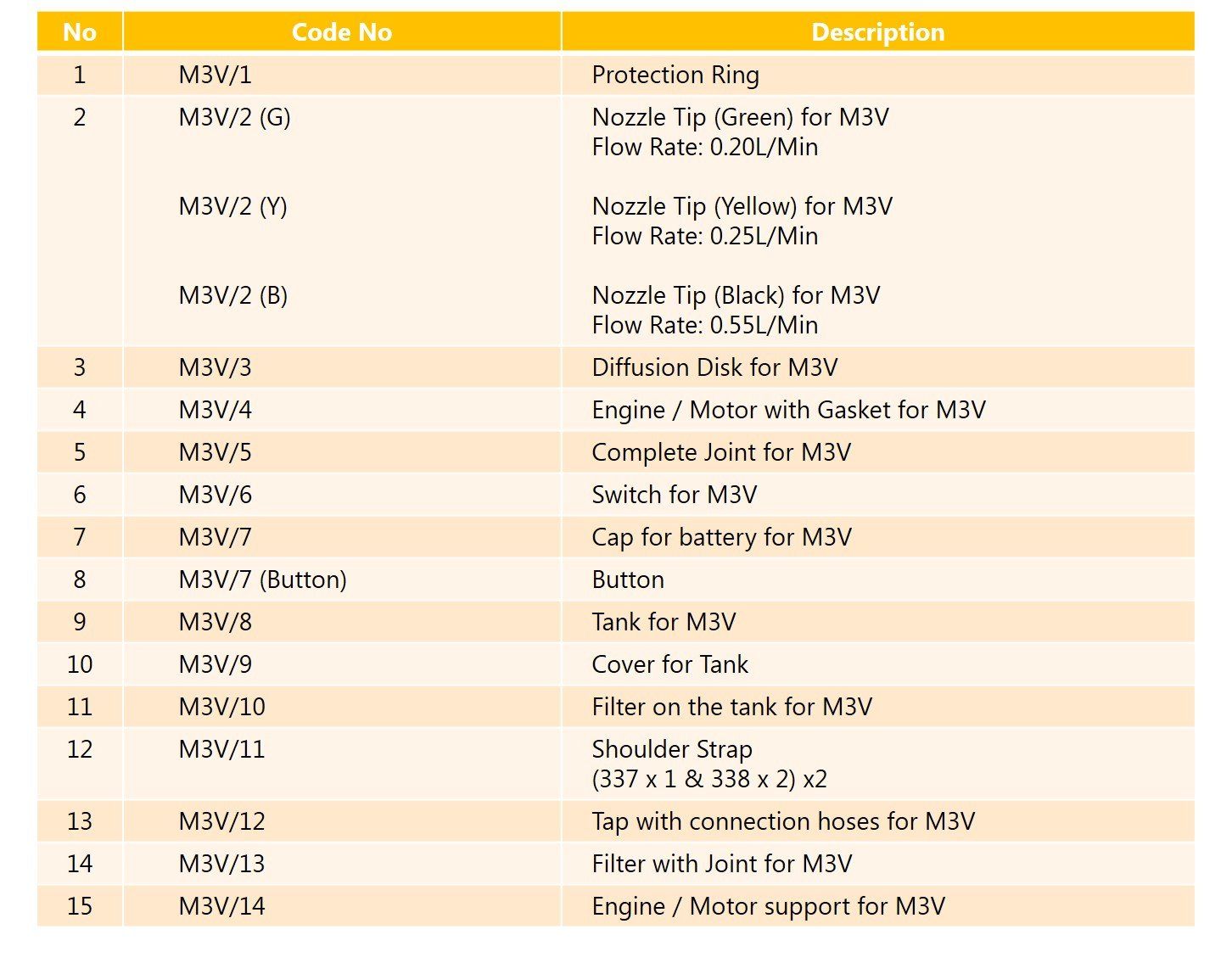

REPLACEMENT PARTS LISTS

control droplets applicator, cda, battery sprayer, garden sprayer, sprayer, jun chong sprayer, cross mark sprayer, pb original sprayer, hand sprayer, agricultural sprayer, knapsack sprayer, backpack sprayer, semi auto knapsack sprayer, mechanical sprayer, power sprayer, low volume sprayer, durable sprayer, light weight sprayer, weedicide sprayer, herbicide sprayer, pam racun cda, pam racun rumput, mesin penyembur racun rumput, pam racun bateri.
control droplets applicator, cda, battery sprayer, garden sprayer, sprayer, jun chong sprayer, cross mark sprayer, pb original sprayer, hand sprayer, agricultural sprayer, knapsack sprayer, backpack sprayer, semi auto knapsack sprayer, mechanical sprayer, power sprayer, low volume sprayer, durable sprayer, light weight sprayer, weedicide sprayer, herbicide sprayer, pam racun cda, pam racun rumput, mesin penyembur racun rumput, pam racun bateri.

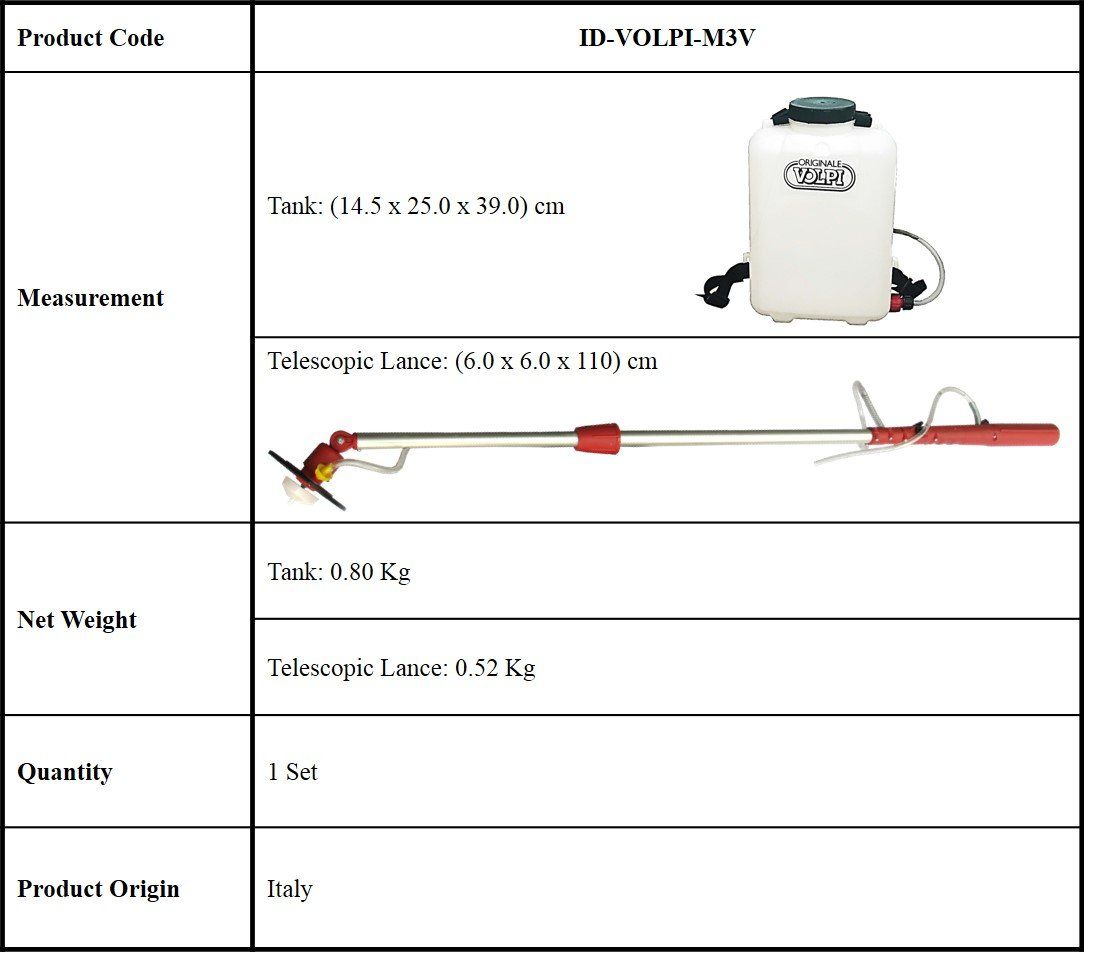

PACKING DETAILS

control droplets applicator, cda, battery sprayer, garden sprayer, sprayer, jun chong sprayer, cross mark sprayer, pb original sprayer, hand sprayer, agricultural sprayer, knapsack sprayer, backpack sprayer, semi auto knapsack sprayer, mechanical sprayer, power sprayer, low volume sprayer, durable sprayer, light weight sprayer, weedicide sprayer, herbicide sprayer, pam racun cda, pam racun rumput, mesin penyembur racun rumput, pam racun bateri.
